Equipment Introduction

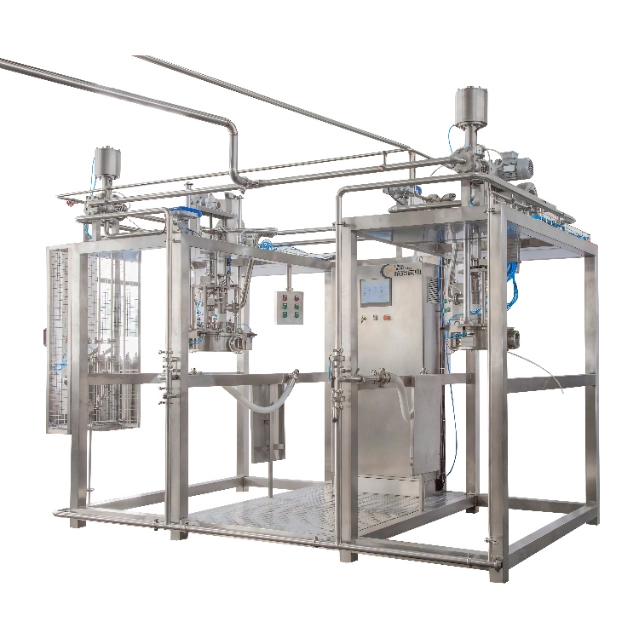

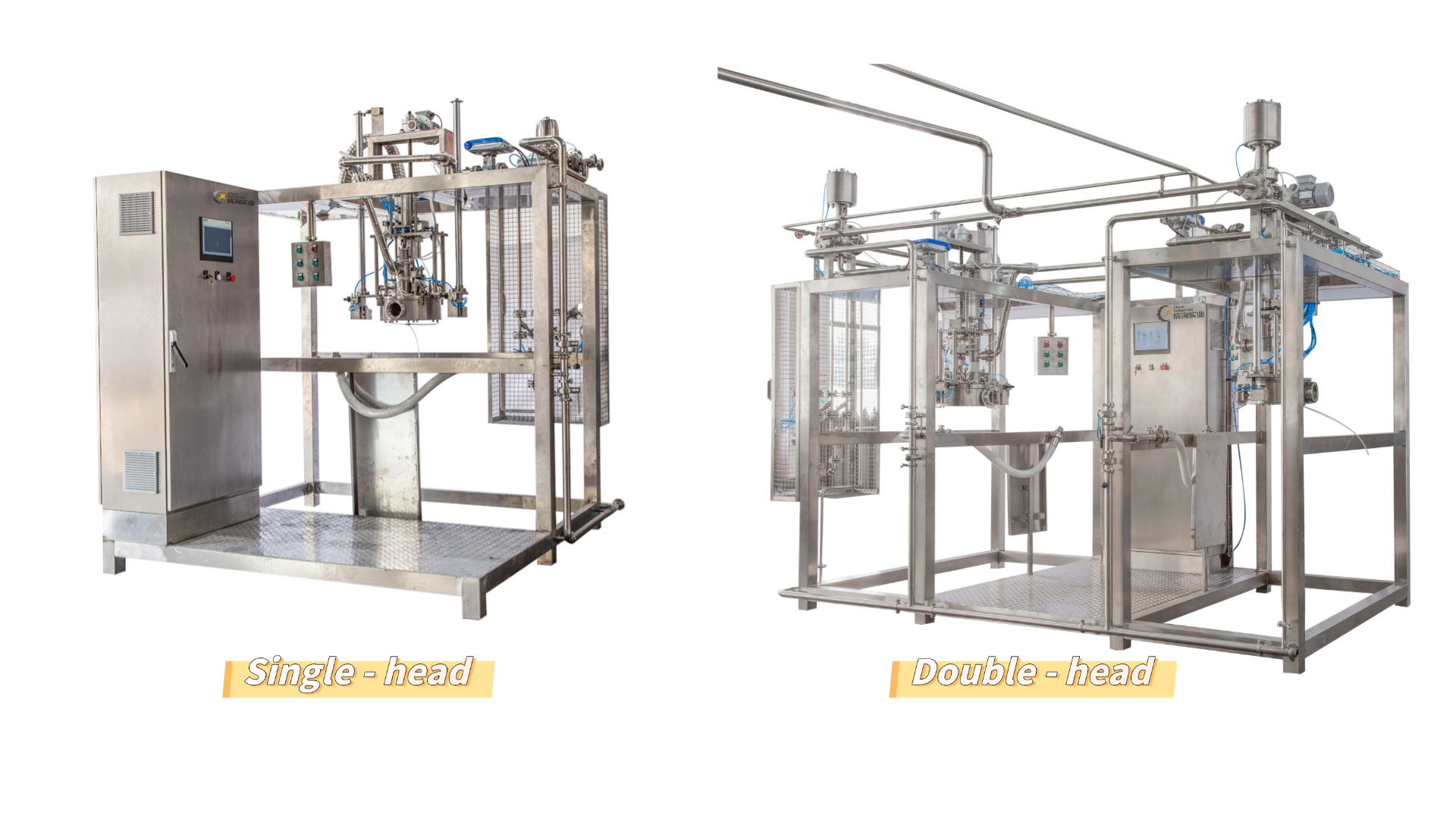

The Aseptic Bag Filler is a device specifically designed for filling liquid products under aseptic conditions. It can be classified into single - head and double - head types according to the number of filling heads. It is widely applied in industries such as food and pharmaceuticals. Its main function is to fill sterilized liquid products into pre - formed aseptic big bags in an aseptic environment, ensuring that products are not contaminated during the filling process and thus extending their shelf life. This equipment usually works in conjunction with an aseptic sterilizer to maintain an aseptic state throughout the production process.
Application Scope
The Aseptic Bag Filler is suitable for the aseptic filling of various liquid products, including fruit juices, fruit jams, pure cereal beverages, wines, drinks, syrups, peanut butter and its extracts, dairy products, and traditional Chinese medicine beverages.
Technical Parameters
Model | Power (kw) | Filling Capacity (L/H) | Filling Temperature(℃) | Precision | Filling Bag Size (L) | Steam Consumption （KG/H） |
Single - head | 0.37 - 380V 50HZ | 500-2000 | 5-45 | ≤1% | 2-1000 | 30 |
Double - head | 0.74 - 380V 50HZ | 3000-5000 | 5-45 | ≤1% | 2-1000 | 50 |
Equipment Features
Aseptic Environment: The equipment uses steam injection to sterilize the aseptic bag mouth and the filling chamber, ensuring that the filling chamber remains aseptic at all times. The sterilization, opening, filling, and sealing of the aseptic bag mouth are all completed in an aseptic environment.
High Filling Precision: It adopts German KROHNE or E + H flow meters, which provide stable measurement and high precision. The filling error can be ≤ 0.5%.
High Degree of Automation: The equipment is easy to operate and can be easily automated, reducing human interference and operating costs while increasing production efficiency. It is equipped with a PLC control system and a human - machine interface, which offers intuitive and convenient operation, as well as self - detection, production data recording, and protection functions.
Strong Adaptability: It can adapt to solutions of different concentrations and properties, and is widely used in various industries and for different types of material handling.
Easy to Clean: It is equipped with a CIP (Clean - in - Place) self - cleaning system and a SIP (Sterilize - in - Place) self - disinfection system. With one - button operation, the equipment can be thoroughly cleaned and disinfected without disassembly, facilitating operation and maintenance and ensuring the equipment's cleanliness and normal operation.
High - quality Materials: The equipment frame is made of SUS304 stainless steel, and the pipes and valves in contact with the materials are made of 316L stainless steel. The filling hose material complies with FDA certification.
Strong Versatility: After a complete upgrade, the equipment now supports two types of bag sizes. Quick switching can be achieved simply by changing the mold, making it highly versatile and able to flexibly meet diverse production needs.
Efficient Production: It is equipped with an advanced roller - type automatic bag - feeding device, which significantly reduces labor costs and improves production efficiency, effectively meeting large - scale production requirements.
