| Size(mm): | |
|---|---|
| Rated Capacity(T/H): | |
| Power（kw）: | |
CXP-PS
上海成洵
0.5/5/10/20
The Crusher uses rotating hammers to quickly cut and crush materials, efficiently breaking them down into smaller fragments or slurries, which facilitates the extraction of liquid or further processing.
The Crusher has a very wide application range in the food industry, covering material processing in multiple fields such as fruit and vegetable protein, coffee and tea beverages, and biological extraction.
Fruit Juice Beverage Field
Fruits: Apples, mangoes, strawberries, kiwifruits, blackberries, mulberries, tomatoes, etc.
Vegetables: Carrots, celery, ginger, green vegetables, etc.
Others: Other berry and pome fruits and vegetables used in fruit juice beverage production.
Protein Beverage Field
Nuts: Peanuts, almonds, walnuts, etc.
Beans: Soybeans, black beans, large soybeans, etc.
Seeds: Sesame, pumpkin seeds, sunflower seeds, etc.
Coffee and Tea Beverage Field
Tea Leaves: All kinds of tea leaves that need to be crushed.
Coffee Beans: Coffee beans used for making coffee beverages.
Others: Such as spices used for making tea beverages.
Biological Extraction Field
Traditional Chinese Medicinal Materials: Ginseng, wolfberries, astragalus membranaceus and other traditional Chinese medicinal materials that need to be crushed.
Biological Materials: Such as animal and plant tissues used in pharmaceutical manufacturing.
The crusher can crush these materials into specifications suitable for extraction and processing.
The Crusher is mainly composed of a motor, main shaft, blades, bearing block, casing, and frame.
The Crusher is driven by a motor to make the main shaft rotate. Blades are evenly distributed in the middle of the main shaft. When the main shaft rotates, the hammers generate significant centrifugal and inertial forces simultaneously. Under the combined action of these two forces, the raw fruits entering from the feed inlet are quickly crushed. The crushed raw fruits fall through the mesh holes of the lower half of the cylinder into the next equipment.
During production, the materials are directly fed into the crusher from the front - end feed inlet through a pump, pipeline, or other conveying equipment. The materials are repeatedly hammered by the rotating hammers until they are finely crushed into certain particles and then discharged through the mesh holes.
The size of the crushed particles is mainly controlled by the size and density of the mesh holes.
Large capacity, processing capacity can be set at 0.5-20T/H according to demand.
One-button control, easy installation and operation.
Power is about 2.2-18KW, low energy consumption.
Compact structure, covering an area of about 1.5 square meters, convenient and flexible movement.
The whole machine adopts SUS304 to ensure the safety and health of production materials.
Hammer type crushing process, crushing rate as high as 99.9%.
Multiple screens can be replaced to handle materials with different granularity requirements.
Equipped with button-type emergency brake device to avoid injury caused by emergencies.
Model | Rated Capacity(T/H) | Size(mm) | Power（kw） |
CXP-PS-0.5 | 0.5 | 1180*500*1450 | 2.2 |
CXP-PS-5 | 3-5 | 1300*540*1500 | 7.5 |
CXP-PS-10 | 8-10 | 1400*640*1600 | 11 |
CXP-PS-20 | 15-20 | 1500*660*1750 | 18 |
Notes: the real capactiy varies according to different kinds of processing material
Before the equipment is put into use, a comprehensive system cleaning must be done strictly according to the process requirements, and all parts in contact with the product must meet the food hygiene requirements.
Clean the equipment before starting each time to prevent material from blocking the screen hole and affecting output.
Press the emergency stop button in time in case of danger or abnormal condition.
Supporting equipment of Shanghai Chase comes from high-quality brands in the industry, such as valves of Spe, transformers of DELIXI, PLC program control of Siemens, diaphragm pump of Wilton, flowmeter of E+H, electrical control elements of Schneider, etc. High-quality accessories enable stable and lasting operation of each equipment.
Shanghai Chase offers end-to-end customized services for liquid food processing projects.
At the project initiation stage, our professional team conducts in-depth consultations to understand the client’s business, inspect the site, and analyze raw materials, followed by factory layout planning based on the required capacity.
Our R&D team then designs customized equipment using 3D modeling technology, selects premium materials, and ensures high-precision manufacturing. Every unit is rigorously tested to meet quality standards before delivery.
Upon arrival, our installation team follows the layout for on-site setup, after which experienced engineers carry out commissioning and provide hands-on training for operators.
Our after-sales service team responds within 24 hours, with ample spare parts stocked to ensure smooth and uninterrupted equipment operation.
Shanghai Chase is backed by a cross-functional team covering sales, procurement, design, manufacturing, quality control, and project coordination.
Our sales team accurately identifies client needs, procurement ensures strict material control, designers craft tailored solutions, manufacturing adheres to rigorous standards, quality control monitors every stage, and the project coordination team ensures timely delivery. Each department collaborates closely with a strong sense of responsibility, following through from initial consultation to final delivery.
In response to an ever-evolving industry, our team actively engages in training and internal workshops to continually improve and grow.
At Shanghai Chase, we take pride in delivering high-quality products and building strong client relationships. Our mission is to ensure stable performance across all types of projects — and to empower your success with our professional expertise.
Shanghai Chase strives to ensure that our products work well in your industry and projects. We're proud of the quality of our products and the relationships we've built with every customer. We look forward to serving you.
1999
Mr. Zhao Jisong, founder and chief engineer of Shanghai Chase, began his career in the food processing equipment industry. He led the design of his first green tea beverage production line, marking the beginning of his journey in the field.
2008
Kunshan Shandelong Machinery Equipment Co., Ltd. was established, focusing on fruit and vegetable processing equipment and engineering services, offering turnkey solutions to clients.
2016
Shanghai Chase Industrial Co., Ltd. was founded as a commercial platform, marking the company's transformation from a manufacturing base to a brand-driven business.
2019
The company invested in land at the Kunshan Development Zone and built its own 8,000-square-meter modern factory — a major step forward in capacity and infrastructure.
2023
The factory was honored as a "High-Tech Enterprise of Jiangsu Province" and a "Technology-Based Private Enterprise", underscoring innovation and technology as core drivers of growth.
2025
Shanghai Chase further expanded its product applications, evolving from a focus on fruit and vegetable processing to liquid food processing — dedicated to providing stable, high-quality equipment to more food manufacturers worldwide.
Shanghai Chase owns and operates its manufacturing base — Kunshan Shandelong Machinery Equipment Co., Ltd — established in 2008, with a total area of 8,000 square meters.
We have built a professional technical and after-sales service team of over 50 experts. The company holds more than 40 patents, multiple CE certifications, and has passed ISO9001, SGS, and BV certifications.
With nearly 20 years of dedication in the food processing equipment industry, our products are well-recognized across China and exported to over 30 countries worldwide. Through hundreds of project experiences, we have continuously refined our solutions — from assisting clients in factory layout planning to ensuring the smooth implementation of production lines — always placing customer satisfaction at the core. We aim to help clients save time, effort, and cost at every stage of their project.

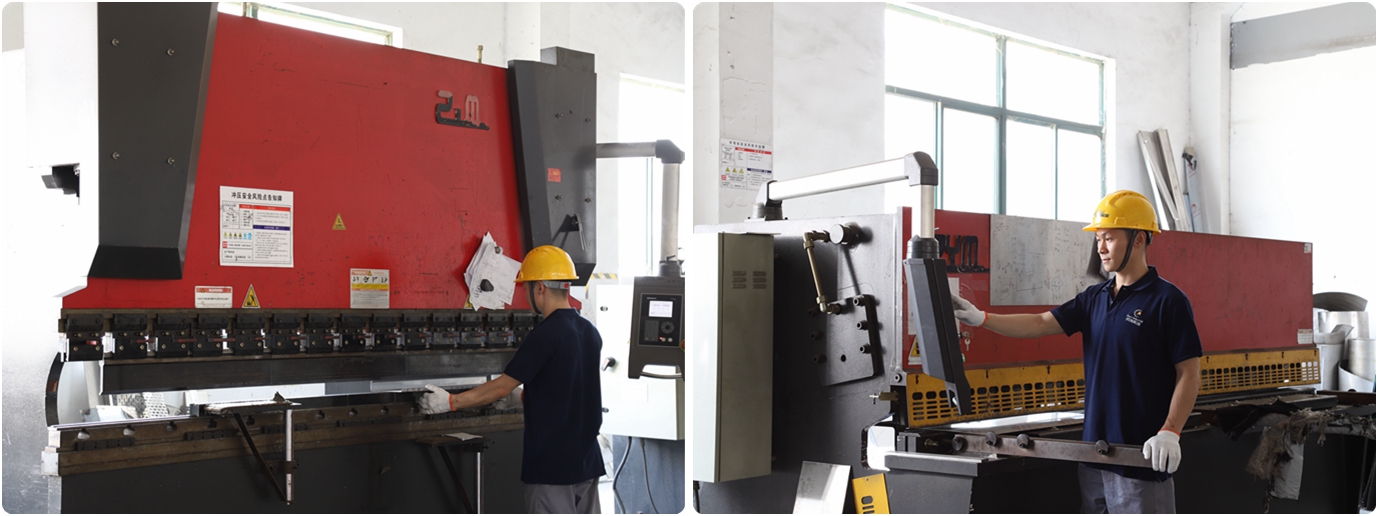

Shanghai Chase has introduced a range of advanced automated manufacturing equipment, including laser cutting machines, laser welding machines, precision tube cutting systems, sheet metal cutters, and bending machines.
